Name: 25m3/H Hzs25 Mini Stationary Concrete Batching Plant Dry Mix
Brand: Hunan Sunny Intelligent Machinery Co.,LTD.
SKU: HSZ100
Price: 130,000.00 USD
Availability: InStock

제품 세부 사항

원래 장소: 후난

브랜드 이름: SUNNY

모델 번호: HSZ100

지불 및 배송 조건

최소 주문 수량: 1세트

가격: USD 110000-150000/ SET

포장 세부 사항: 컨테이너

배달 시간: 25-30 일

지불 조건: L/C, T/T, D/P, Western Union, MoneyGram

공급 능력: 한 달에 20 세트/세트

최고의 가격을 얻으십시오

제품 세부 사항

제품 설명

강조하다:
                                                                                                                                                                                                                                                                                                                25m3/H stationary concrete batching plant, Hzs25 mini dry mix plant, stationary concrete mixing plant with warranty


상품:	시멘트, 으깬 돌, 모래 등	어플리케이션:	건물 작업, 건설 프로젝트, 교량, 부두, 공항
제어 시스템:	자동 PLC 제어, 완전히 자동	생산력:	≤60m3/h
믹서:	JS2000 쌍자동 콘크리트 믹서	보증:	12개월
상태:	새로운	판매 후 서비스 제공:	해외 서비스 기계, 온라인 지원, 비디오 기술 지원, 현장 설치, 커미셔닝 및 교육에 이용 가능한 엔지니어

상품:	시멘트, 으깬 돌, 모래 등
어플리케이션:	건물 작업, 건설 프로젝트, 교량, 부두, 공항
제어 시스템:	자동 PLC 제어, 완전히 자동
생산력:	≤60m3/h
믹서:	JS2000 쌍자동 콘크리트 믹서
보증:	12개월
상태:	새로운
판매 후 서비스 제공:	해외 서비스 기계, 온라인 지원, 비디오 기술 지원, 현장 설치, 커미셔닝 및 교육에 이용 가능한 엔지니어

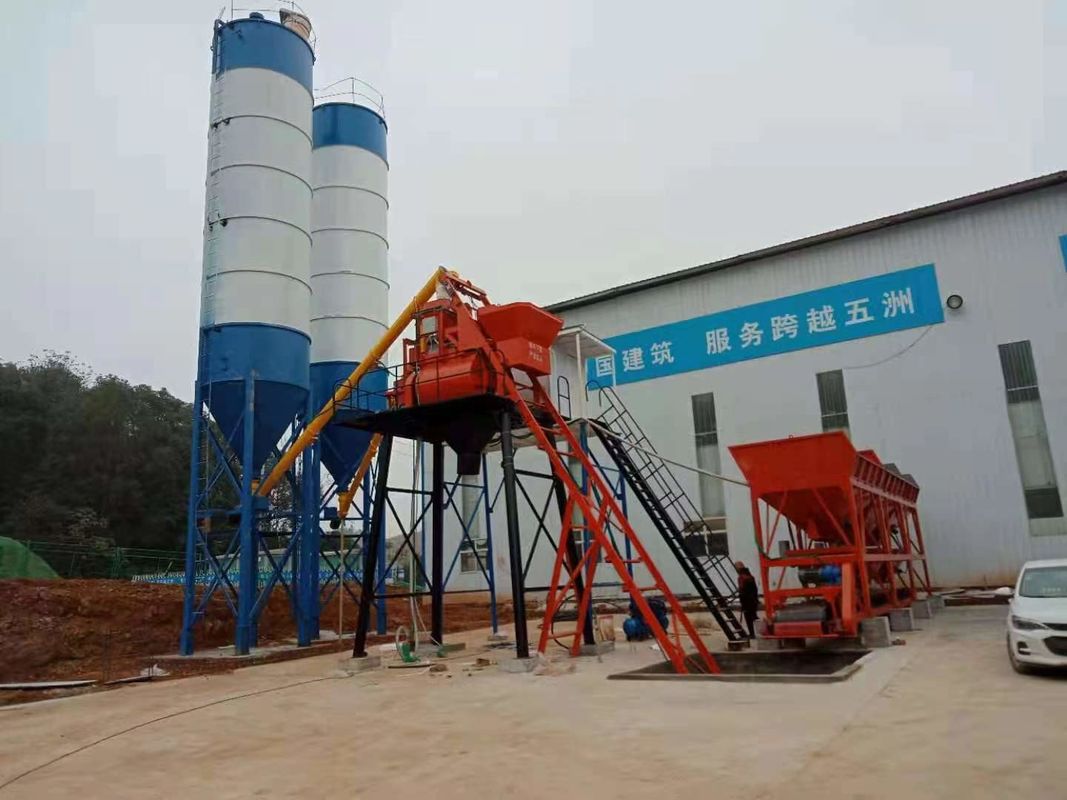

25m3/H Hzs25 Mini Stationary Concrete Batching Plant Dry Mix

Full Automatic HZS25 Concrete Batching Plant - High Efficiency Batching Plant

Product Attributes

Material	cement, crushed stone, sands and so on
Application	Building Works, Construction Projects, bridges, docks, airport
Control system	automatic PLC control, totally automatic
Productivity	≤60m³/h
Mixer	JS2000 Twin-shaft Concrete Mixer
Warranty	12 Months
Condition	New
After-sales service	Engineers available to service machinery overseas, Online support, Video technical support, Field installation, commissioning and training

Product Description

Bucket type Full automatic HZS25m³/h to 100m³/h concrete batching and mixing plant with 100t-200t cement silos.

High Efficiency 60m³/h Stationary Concrete Batching Plant Concrete Mixing Plant

Aggregate Batcher: Stores and measures different aggregates like sand, gravel, and crushed stone.
Cement Silo: A storage unit for cement to maintain a steady supply to the mixer.
Twin-Shaft Mixer: Ensures uniform and thorough mixing of raw materials to produce high-quality concrete.
Control System: Equipped with a PLC (Programmable Logic Controller) for automation and easy operation.
Weighing System: Measures the exact weight of ingredients (cement, aggregates, water, and additives) for accuracy.

Applications

Small residential and commercial buildings
Rural and township road construction
Sidewalks, driveways, and repair works
Precast concrete components
Mobile or temporary job sites

Model Specifications

Model	HZS35	HZS50	HZS75	HZS100
Production in Theory (m³/h)	35	50	75	100
Mixer Type	JS750	JS1000	JS1500	JS2000
Mixing Motor Power (KW)	2×15	2×18.5	2×30	2×37
Cycle time(S)	60	60	60	60
Mixer Discharging Volume(L)	750	1000	1500	2000
Maximum Particle Size of Aggregate(mm)	60	60	60	80
Batching Volume(L)	1200	1600	2400	3200
Aggregate Species	2-3	2-4	4	4
Aggregate lifting motor power(kw)	7.5	15	18.5	22
Discharging Height (m)	4	4	4	4
Installed Capacity(KW)	50	70	110	120

Key Features

Combined structure and unitized module design for quick installation and demolition
Increased unloading angle of aggregate bin prevents unloading difficulties during rainy conditions
Cylinder discharge or electric push rod discharge options for convenience
High-quality steel construction ensures structural strength and stability
Twin-shaft forced mixing main machine provides superior mixing performance and productivity
Premium pneumatic and electrical components ensure reliability and accurate metering
Comprehensive maintenance access with walking platforms and check ladders
Environmentally friendly design with pulse dust removal and wastewater recycling
